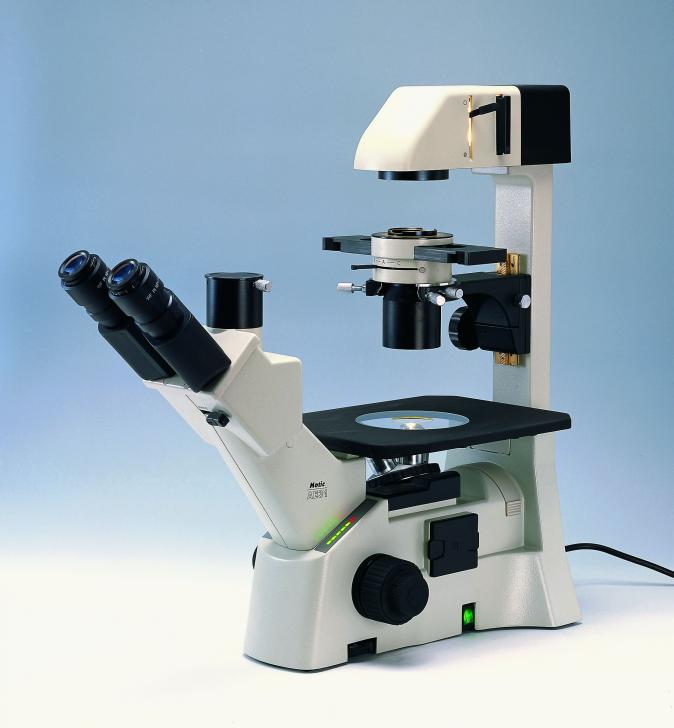

Motic AE31 – Inverted Trinocular Microscope

Motic offers a complete range of compound life science microscopes. These high quality microscopes are equipped with Motic´s Color Corrected Infinity optical System (CCIS®), ensuring superb optical quality.

These microscopes are designed for college and university students performing observation and examining specimens in any science, biology and medical research field.

Phase contrast and Epi-Fluorescence is available in the AE series.

FEATURES

Trinocular head Siedentopf type, 45º inclined (light split 100:0/20:80)
Optionally Trinocular head with light split (100:0/0:100)
Widefield high eyepoint eyepieces WFPL10X/22mm with diopter adjustment on both eyepieces, with rubber eyecups
Centering telescope
Side facing quintuple nosepiece
CCIS Plan Achromatic objective PL4X
CCIS Plan Achromatic Phase objective PL PH10X, LWD PL PH20X, LWD PL PH40X
Plain stage, glass and metal inserts
ELWD N.A. 0.30 condenser
Phase slider, centrable PH1, brightfield, PH3
Koehler illumination quartz halogen 6V/30W with external lamp house and intensity control
